glass edge polishing machine variable glass flat edging SUNKON

glass edge polishing machine variable glass flat edging SUNKON

Model
CGZ9325-45
Control System
As requested
Certification
CE
Min. Order
1 Set
Price
Negotiate
Port
Shunde, Guangzhou, Shenzhen, China
Production Capacity
50 sets / Month
Package
Wrapped by PE. Film or Play-wood box
Payment Terms
T/T, L/C, Western Union, etc
Warranty period
One Year
Company Advantages
1. Through improved the design of mitering machine to make our work simple and solve our quality problems.Application of precise quality inspection apparatus in the process of manufacturing
2. We believe in treating our customers with equality and respect, as we provide prompt delivery of quality products at the most competitive prices. Equipped with drilling bits of different size which ensure holes in various size can be made
3. Corporate Quality Manual and Corporate Quality Procedures are the basis of SUNKON (CGTECH) Glass Machinery Co., LTD’ s Quality System and additional standard operating procedures and work instructions are created at plant level, as necessary in support of the operations. With Siemens high-end PLC control system, the double edging machine is efficient and reliable
4. The best part about this straight mitered edger is the glass edge polishing machine, which features glass edge polishing machine for sale. A benchmark in the glass field for its reliability, user-friendliness, and multifunction.
5. We use our many years of experience to make your variable miters edging machine look as good as possible. Excellent processing quality guaranteed by continuous investments in research and development.
Product Description

Glass mitering edging machine #CGZ9325D-45° with 9 motors, It's suitable for grinding flat glass with arris, variable angle and 45° edging. 5 motors from front beam can adjustable 0~45° and as a whole to move in /our to achieve angle adjustment .
Coarse grinding, fine grinding, polishing and chamfering can be completed in one time. It can process the glass edge as bright as the glass itself.
The base, front and rear beams, pedestal, and grinding heads are of casting materials (annealed to prevent deformation), which can bear large loads and has stable performance.
With reasonable design ,and high precision processing, It is the best glass grinding equipment for processing the mass production of craft glass, home appliances glass, decoration and furniture glass, doors and architecture glass.

Technical Specifications

Number of Spindles

9pcs

Max. Glass size

3000×3000mm

Min. Glass size

80×80mm

Glass thickness

3-25mm

Transmission speed

0.5-6m/min

Max. Hypotenuse width

30mm

Working height

750mm

Bevel angle

0~45°

Weight

3500kg

Land occupation

7800×1000×2500mm

glass diagonal error

0.5mm/m

glass parallelism error

0.3mm/m

Total Power

21KW

Voltage/Frequency

380V/50HZ or Customized

High quality structure parts


undefined

With digital display to show the glass thickness and processing speed.




undefined


The Schneider brand electronic components

undefined


The Schneider brand to ensure the machine runs smoothly and durable for using.

undefined


The China famous brand for the grinding motors, durable and reliable for use.




undefined

The power capacity step-less reducer to ensure the machine working more stable while processing the heavy and overload size glass sheet.




undefined


Use this motor to control the grinding motors as a whole to adjust the angle

undefined


The big and strong gears to make glass machine more durable for use, running more stable.

undefined


The Aluminum supporting frame with fluency strips, no rust and durable for use.




undefined

The Double S/S water tanks system, one for water circulation, and the other one for cerium polishing water than with mixer function..




undefined

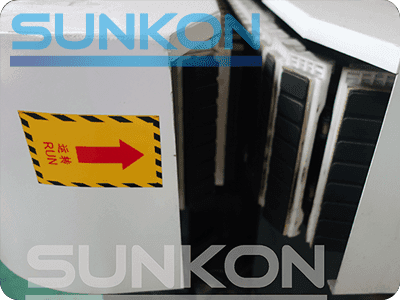

The Italy brand timing belt to convey the glass.

undefined

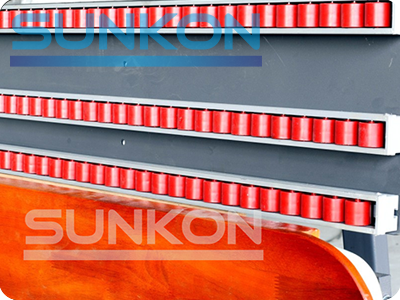

The superior quality front & rear pads, to bring the glass transmission more stable

undefined

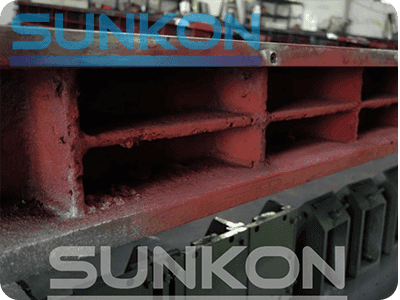

The pedestal, upright post, front and rear crossbeam, with annealing treatment to prevent deformation.


Exhibition
2017 BEIJING EXHIBITION



2017 USA EXHIBITION



2017 TURKEY EXHIBITION


Now contact us for order via this sheet, to get more free spare parts or discount!





Company Features
1. SUNKON (CGTECH) Glass Machinery Co., LTD is a world leader in the design and manufacture of high-quality, rigid mitering machine for the glass edge polishing machine and glass edge polishing machine for sale products industries. - Welcome To Visit Our Factory! SUNKON's Goal Is To Provide High-Quality straight mitered edger, glass edge polishing tools, glass edge grinding machine To Customers And Create Mutual Benefits. If You Are Interested In Our High-Quality Products And Related Service, Pls Contact Us.
2. Adversity Makes A Man Wise, Not Rich. SUNKON Is One Of The Leading variable miters edging machine, glass edger for sale, glass edge polishing machine Factories. Inquire!
3. In order to ensure high reliability and long lasting nature, the whole array of mitering machine is stringently tested against diverse parameters of quality. - Please See More Information On Our Website,For Your Oem Or Odm straight mitered edger, glass edge polishing machine for sale Orders, SUNKON (CGTECH) Glass Machinery Co., LTD Is Sure That We Can Make You Satisfied, Please Make Our Company Your Trusted Supplier, More Styles Wanted, Please Contact Us Right Now, Inquire!
